SANITARY CONNECTOR

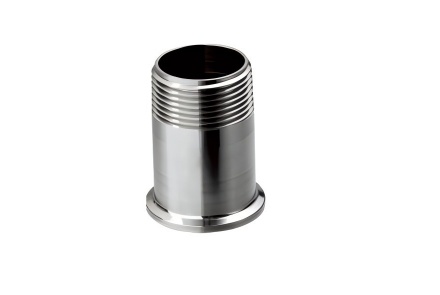

Sanitary Clamp/Male Thread‌ Connector


1. Core Specifications‌

  • ‌Materials‌:

  • Polypropylene (PP) for chemical resistance (up to 125 psi at 82°C)‌

  • Stainless steel (SS304/316L) with electropolished finishes for high-purity applications‌

  • PVDF variants for extreme temperatures (-40°C to 138°C)‌

  • ‌Connection Types‌:

  • ‌Sanitary Clamp‌: Tri-Clamp (DIN/SMS standard) for quick assembly/disassembly‌

    Male Thread‌: NPT (National Pipe Thread) or BSP threads for sealed pipe connections‌

  • ‌Size Range‌:

  • Common diameters: 3/4" to 4" (DN20–DN100)‌

  • Customizable larger sizes (up to 10") available for stainless steel adapters‌

‌2. Performance & Compliance‌

    ParameterPP Adapter‌Stainless Steel Adapter‌PVDF Adapter‌
    Max Pressure125 psi (ambient)Varies by design150 psi (ambient)
    Temp Range-9°C to 82°C-30°C to 150°C (316L)-40°C to 138°C
    Standards3A, DIN3A/DIN/ISO/SMSFDA-compliant

‌3. Applications‌

  • ‌Pharmaceutical/Biotech‌: Sterile fluid transfer with autoclave-compatible PP/PVDF adapters‌

  • ‌Food & Beverage‌: SS316L connectors for CIP/SIP processes in dairy or brewing systems‌

  • ‌Chemical Processing‌: PVDF options for corrosive media resistance‌
