SANITARY CLAMP/PIPE HOLDER

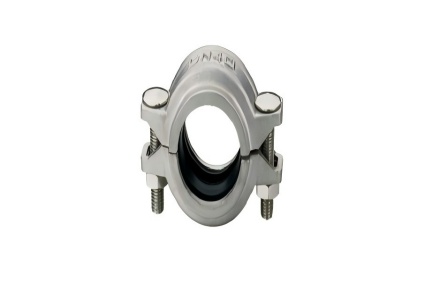

Coupling Clamp


‌1. Key Terminology‌

  • ‌Primary Term‌: Coupling Clamp

  • ‌Alternate Names‌:

  •     Pipe Coupling Clamp

  •     Hygienic Tri-Clamp Coupling

‌2. Design & Material‌

  • ‌Pressure Rating‌: 10-16 bar (316L stainless steel variant)‌

  • ‌Materials‌:

  • ‌    SS304/316L‌ with electropolished finish (Ra≤0.8μm)‌

  •     PVDF option for chemical resistance‌

  • ‌Sealing‌: EPDM/FKM gaskets (FDA/3A compliant)‌

‌3. Technical Parameters‌

‌    Specification‌‌Detail‌
‌    Size Range‌DN15-DN300 (1/2"-12")‌
 ‌   Temp. Range‌-20°C to +150°C‌
‌    Standards‌DIN 11851 / 3A / SMS‌

‌4. Applications‌

  • ‌Pharmaceutical‌: Sterile pipeline connections‌

  • ‌Food & Beverage‌: CIP/SIP systems‌

  • ‌Chemical‌: Corrosive fluid transfer‌
