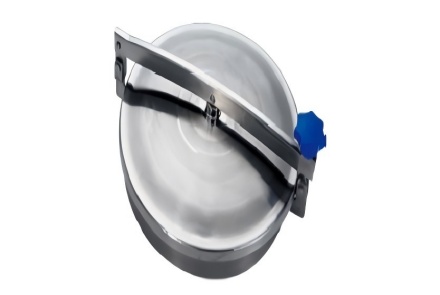

PRESSURE TYPE MANHOLE COVER

Sanitary Clamped Manway

‌1. Core Specifications‌

• ‌Material‌:
         Typically constructed from ‌AISI 304/316L stainless steel‌ with electropolished surfaces (Ra ≤ 0.5μm) for contamination resistance

• ‌Clamp Mechanism‌:
         Utilizes ‌tri-clamp or sanitary clamp fittings‌ (per DIN/3A/SMS standards) for rapid assembly/disassembly, ensuring airtight seals

• ‌Pressure Rating‌:
         Common variants support ‌0-5 bar‌ pressure, with some models rated for higher pressures (up to 10 bar)

‌2. Design Variants‌

• ‌Shape‌:
         Available in ‌round, oval, or rectangular‌ configurations, with round types being most prevalent for dairy/pharmaceutical tanks

• ‌Gasket Options‌:
         Includes ‌EPDM, silicone, or Viton‌ seals to accommodate temperature ranges from ‌-40°C to 135°C‌

• ‌Neck Height‌:
         Standard heights range from ‌100mm to 150mm‌, customizable for tank wall thickness

‌3. Industry Applications‌

• ‌Food & Beverage‌:
         Used in ‌milk, yogurt, and dairy processing‌ tanks, compatible with CIP/SIP cleaning

• ‌Pharmaceutical‌:
         Meets ‌GMP‌ requirements for sterile bioreactors and fluid handling systems

• ‌Chemical‌:
         Corrosion-resistant models for reactors with aggressive media

‌Selection Considerations‌

• Verify ‌clamp size‌ (e.g., 1.5"–6") and ‌surface finish‌ (180–320 grit) per application needs

• For pressurized systems, confirm ‌ASME BPE compliance‌ and gasket material compatibility
