SANITARY SIGHT GLASS/ SANITARY SIGHT CLEANING BALL

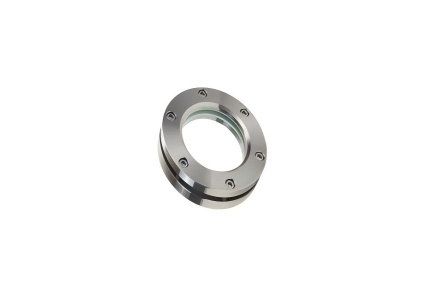

Hex Socket Flange Sight Glass

‌Key Features & Specifications‌

1. ‌Structural Design‌

• ‌Hex socket drive‌: Allows torque application via internal hex key (common in hydraulic/industrial fittings) ‌

• ‌Flange connection‌: Complies with DIN/ISO standards for leak-proof sealing ‌

‌Materials‌

• Body: ‌SUS304/316L stainless steel‌ (mirror-polished, Ra ≤0.8μm) ‌

  View window: ‌Borosilicate glass‌ (tempered) or ‌quartz‌ (for high-temperature applications up to 800°C) ‌

‌Technical Parameters‌

• Parameter	Value
  Size Range	DN15-DN200 (1/2"-8") ‌
  Pressure Rating	≤2.5 MPa ‌
  Temperature Range	-20°C to +300°C (800°C for quartz) ‌

‌Applications‌

 ‌   Chemical/Petrochemical‌: Monitoring fluid flow in reactors/pipelines

 ‌   Pharmaceutical/Food‌: Sanitary process observation (CIP/SIP compatible) ‌
