SANITARY SIGHT GLASS/ SANITARY SIGHT CLEANING BALL

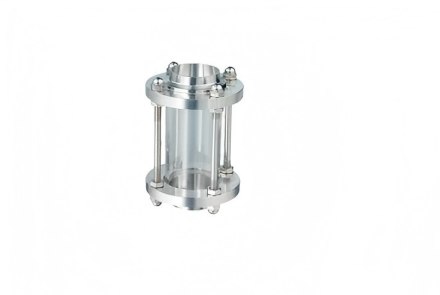

Sanitary DIN Welded Sight Glass

Technical Specifications‌

1. ‌Material & Construction‌

• Body: SUS304/316L stainless steel (mirror-polished, Ra ≤0.8μm) ‌

• View window: Borosilicate glass (tempered) or quartz options ‌

• Connection: DIN standard welded ends (permanent installation) ‌

2. ‌Performance Parameters‌

   Parameter	Value
   Size Range	DN25-DN100 (1"-4") ‌
   Pressure Rating	0.6–2.5 MPa ‌
   Temperature Range	-20°C to +180°C ‌

3. ‌Certifications‌

• DIN 11851 compliant ‌

• 3-A & CIP/SIP compatible ‌

4. ‌Key Features‌

• Permanent welded connection for leak-proof performance ‌

• 360° visibility with electropolished surfaces (Ra ≤0.5μm) ‌

• Optional protective sleeve (polycarbonate/stainless steel) ‌
