SANITARY SIGHT GLASS/ SANITARY SIGHT CLEANING BALL

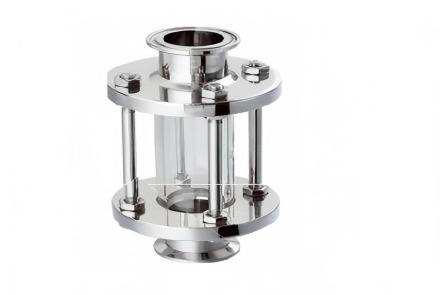

Sanitary DIN Clamped Sight Glass

Technical Specifications‌

1. ‌Material & Construction‌

• Body: SUS304/316L stainless steel (mirror-polished, Ra ≤0.8μm) ‌

• View windo: Borosilicate glass (tempered) or quartz options ‌

• Connection: DIN standard clamped ends with tri-clamp fittings ‌

2. ‌Performance Parameters‌

   Parameter	Value
   Size Range	DN15-DN150 (1/2"-6") ‌
   Pressure Rating	0.6–2.5 MPa ‌
   Temperature Range	-20°C to +180°C ‌

3. ‌Certifications‌

• DIN & 3-A compliant ‌

• CIP/SIP compatible ‌

4. ‌Key Features‌

• Quick-release clamp design for easy maintenance ‌

• 360° visibility with electropolished surfaces (Ra ≤0.5μm)

• Optional protective net for fragile media ‌
