SANITARY SIGHT GLASS/ SANITARY SIGHT CLEANING BALL

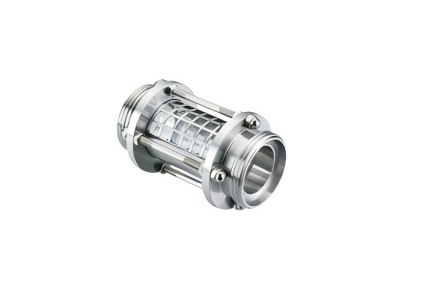

Sanitary Threaded Sight Glass

Technical Specifications‌

1. ‌Material & Construction‌

• Body: SUS304/316L stainless steel (mirror-polished) ‌

• View window: Borosilicate glass or polycarbonate options ‌

• Connection: Threaded ends (3A/SMS/ISO standards) ‌

2. ‌Performance Parameters‌

   Parameter	Value
   Size Range	1/2" to 4" (DN15-DN100) ‌
   Pressure Rating	0.6–2.0 MPa ‌
   Temperature Range	-10°C to +180°C

3. ‌Certifications‌

• 3-A, DIN, IDF compliant ‌

• CIP/SIP compatible ‌

4. ‌Key Features‌

• 360° visible flow monitoring ‌

• Optional protective stainless steel net ‌

• Electropolished internal surfaces ‌

5. ‌Applications‌

• Pharmaceutical reactors, dairy pipelines ‌

• Food/beverage processing systems ‌
