SANITARY SIGHT GLASS/ SANITARY SIGHT CLEANING BALL

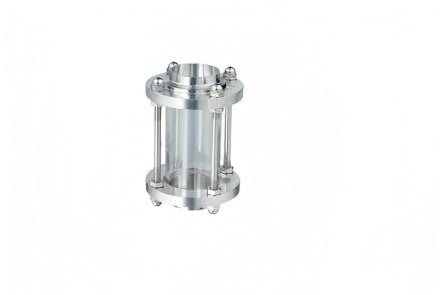

Sanitary Welded Sight Glass

Technical Specifications‌

1. ‌Material & Construction‌

• Body: SUS304/316L stainless steel (mirror-polished) ‌

• View window: Borosilicate glass (tempered) or polycarbonate tubing options ‌

• Connection: Permanent welded ends (sanitary orbital welding) ‌

2. ‌Performance Parameters‌

   Parameter	Value
   Size Range	3/4" to 6" (DN20-DN150) ‌
   Pressure Rating	0.6–2.5 MPa ‌
   Temperature Range	-10°C to +250°C ‌

3. ‌Certifications‌

• 3-A, DIN, IDF compliant ‌

• CIP/SIP compatible ‌

4. ‌Key Features‌

• 360° visible flow monitoring

• Optional protective stainless steel tubing

• Electropolished internal surfaces ‌

5. ‌Applications‌

• Pharmaceutical reactors, dairy pipelines ‌

• High-purity food processing systems ‌
