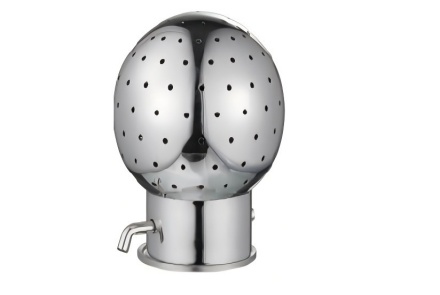

Sanitary Bolted Fixed Cleaning Ball
Key Features:
Construction:
Material: 316L stainless steel (standard), electropolished for Ra ≤ 0.8μm surface finish.
Seals: FDA-compliant EPDM/FKM/silicone gaskets.
Connection: Tri-clamp/Tri-clover flange (DIN/SMS/ISO standard).
Design:
Fixed (non-rotating) spherical body with precision-drilled orifices.
Bolted assembly for easy disinfection and maintenance.
Internal channels optimized for 360° spray coverage.
Performance:
Flow rates: Adjustable via orifice size (typically 1–5mm).
Working pressure: ≤10 bar (standard).
Temperature range: -20°C to +150°C (varies by seal material).
Compliance:
Meets 3-A, EHEDG, and ASME BPE standards.
Full drainage design (no liquid trapping).
Applications:
Tank/pipe cleaning in dairy, brewing, biotech.
High-purity fluid systems requiring zero contamination risk.
