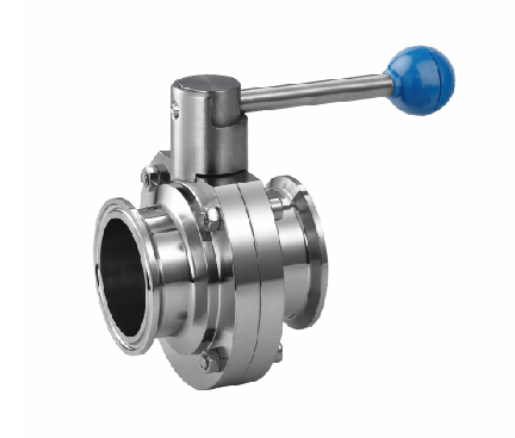

Sanitary Clamp Butterfly Valve

Our stainless steel butterfly valve with polished are widely used for food, beverage, dairy, biotech and pharmacy etc industries. We can supply manually butterfly valve, pneumatic butterfly valve and electric butterfly valve.
For manual type, we have pull handle, gripper handle, steel trigger handle, 4 position and adjusting type are available.


For pneumatic butterfly valve, we have single action type(air/spring) and also double action type(air/air). And we can also equipped with control box.
The butterfly valve body and disk are full CNC machined, sanitary polished to meet food industry.


Requiring more detail information and catalog please don't hesitate to contract us. We can also produce according to your drawing If your specification is out of our standard.




Advantage:
1) Low to torgue design results in cost effective actuation
2) suitable for aggressive chemical enviroment
3) Multi-stop handle for fine control, and looking handle option
4) Steam self-compresating for temperature and pressure
5) Easy to assemble a patented ball-body self alignment feature
6) Suitable for pigging system

Product Details Return to Series

Connection types: welding , quick installation, threaded, clamp, etc

Drive mode: manual, worm gear drive, pneumatic drive, electric drive

Belonging to: Sanitary Valve Series

Standards: ISO, DIN, IDF, SMS, 3A, etc

Material: Various stainless steel materials such as sus304, sus316L, etc

Product Description: Sealed well, long service life

Sealing rings: EPDM, silicone rubber, fluororubber, etc

Packaging: cardboard/wooden box packaging/plastic

Work pressure: 0.6Mpa, 1.0Mpa

Working temperature: -10 ℃+100 ℃

Applicable media: liquids, gases, oils, various highly corrosive chemical media

Application scope: Food, beverages, pharmaceuticals, dairy products, beer, and fine chemicals
